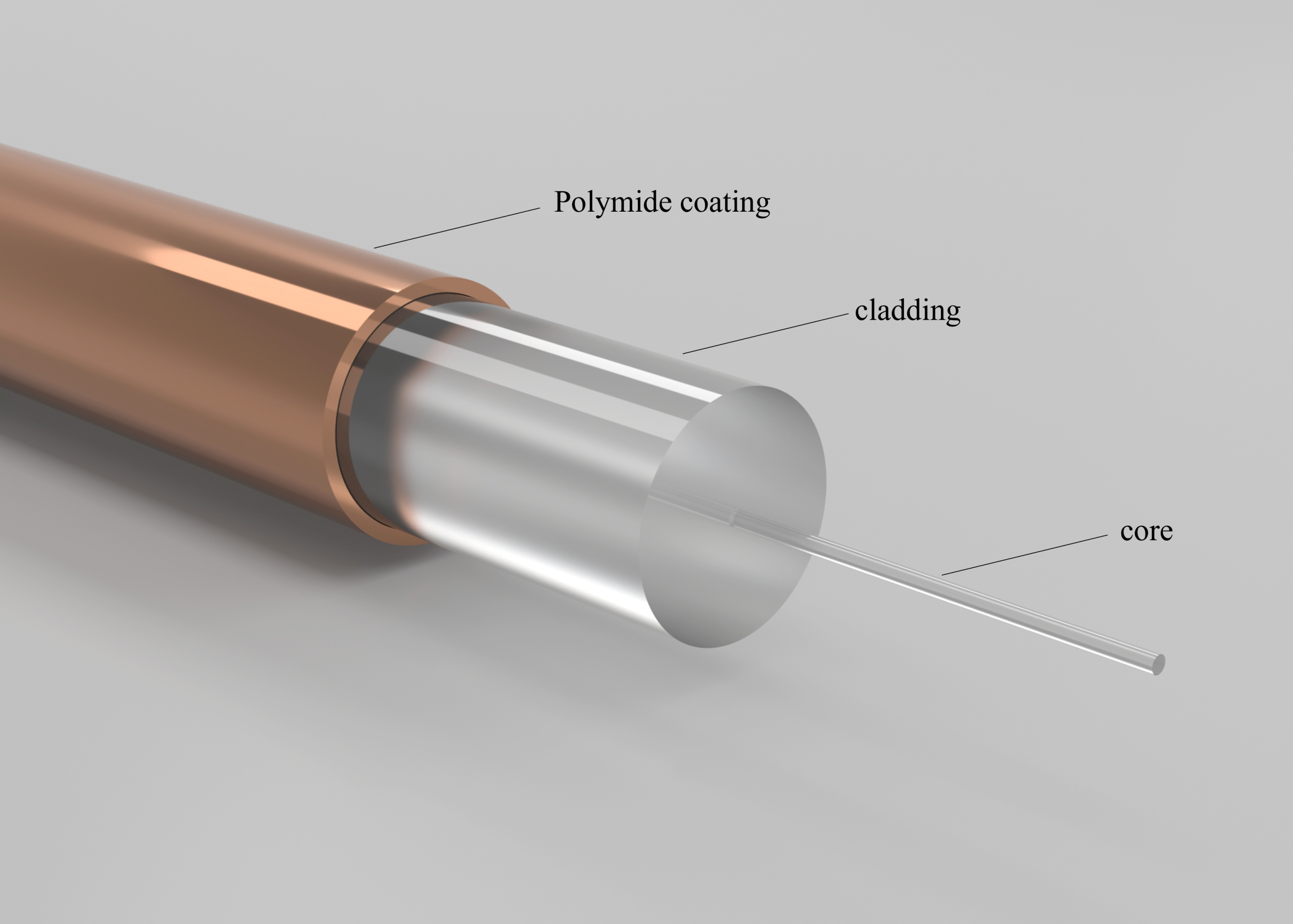

Polyimide (PI) is a polymer material with excellent high and low-temperature resistance, good mechanical strength, and ductility, as well as outstanding comprehensive performance. It can significantly improve the temperature resistance of optical fiber coatings, prolong the service life of fibers in high-temperature environments, and maintain good mechanical properties without becoming brittle in low-temperature environments. Moreover, Polyimide is non-toxic, stable, and biocompatible, making it suitable for manufacturing tableware and some medical consumables alternatives. Additionally, Polyimide can resist almost all organic solvents, some inorganic acids, and hydrolysis.
| Product code | SM9/125/155PI |
PSC_SM9/125/155PI |
| Numerical Aperture | 0.12-0.14 | |
| Mode Field Diameter | @1310 nm 9.2±0.4 μm
@1550 nm 10±0.8 μm |
@1550 nm 9.3±0.8 μm |
| Spectral loss(dB/km) | @1310 nm<0.8 dB/km
@1550 nm<0.6 dB/km |
@1310 nm<1 dB/km
@1550 nm<0.8 dB/km |
| Core Material | Germanium-doped silica | High-purity silica |
| Cladding diameter | 125±1μm | |
| Length | ≤30km | |
| Jacket diameter | 155±5μm | |
| Concentricity of core cladding | ≤0.8μm | |
| Cladding non-circularity | ≤1% | |
| Jacket Material | Polyimide | |
| long-term working temperature | ①-60~300℃;②-195~350℃(HTPI) | |
| Short-term temperature tolerance | 400℃ | |
| Prooftest | 100kpsi | |
Sollektor
+0086+15618183621
jasmin_xu@sollektor.com
info@sollektor.com
+86-4006-888-937
Polyimide (PI) is a polymer material with excellent high and low-temperature resistance, good mechanical strength, and ductility, as well as outstanding comprehensive performance. It can significantly improve the temperature resistance of optical fiber coatings, prolong the service life of fibers in high-temperature environments, and maintain good mechanical properties without becoming brittle in low-temperature environments. Moreover, Polyimide is non-toxic, stable, and biocompatible, making it suitable for manufacturing tableware and some medical consumables alternatives. Additionally, Polyimide can resist almost all organic solvents, some inorganic acids, and hydrolysis.
Medical Industry
Power Industry
Optical Communication Industry
Aerospace, Chemical, and Nuclear Industries
High-Temperature, High-Pressure, and Low-Temperature Environments
Compatible with Ethylene Oxide (ETO) Sterilization and Radiation Sterilization (Pure Silica Core)
Mining Industry, Oil and Gas Industry
Electromagnetic Radiation Environment, Underwater Use, Water-resistant
Medical Interventional Therapy with Biocompatibility
