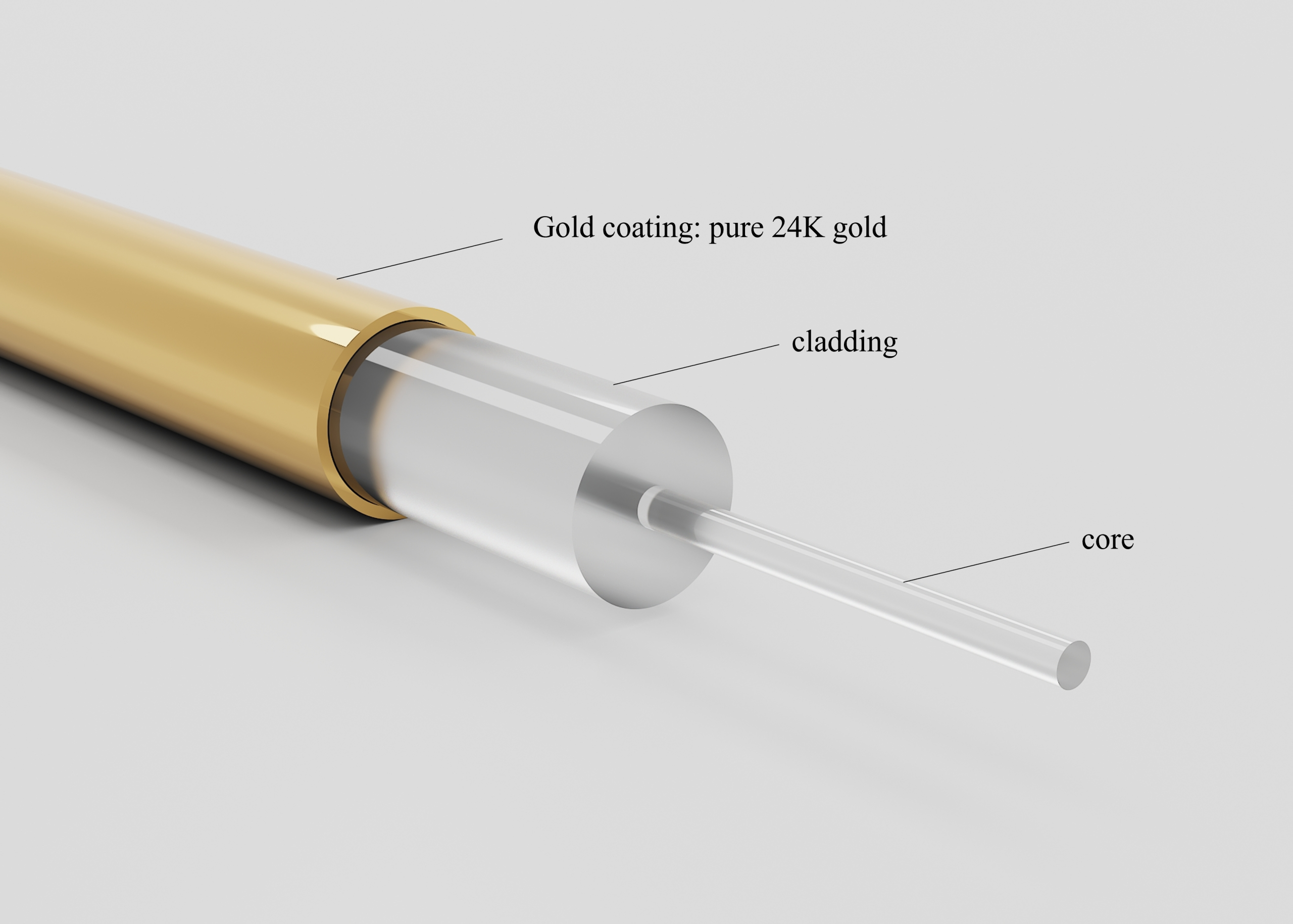

Sollektor’s Gold Coated Fiber represent the pinnacle of metal coated fiber technology, engineered to set the industry benchmark for performance in extreme conditions. As a premium metal coated fiber solution, they deliver an unparalleled operating temperature range of -269°C to +700°C, the widest available on the market. This exceptional thermal stability is a core benefit of the robust metal coating, which hermetically seals the glass fiber, ensuring reliable signal transmission where other sensors would fail.
Extreme Temperature Monitoring: Providing critical data in high-temperature processes and cryogenic systems.
Harsh Chemical Exposure: Offering reliable performance in corrosive and caustic environments where other materials degrade.
Ultra-High Vacuum (UHV) Systems: The vacuum-tight seal achievable with this metal coated fiber makes it indispensable in semiconductor manufacturing and particle physics research.
Aerospace and Power Generation: Enabling precise monitoring and control within rocket engines, turbine assemblies, and jet engines, where failure is not an option.
| Characteristics | G652D | G657A2 |
| Fiber Material | Ge Doped Silica | |
| Mode Field Diameter @1310nm | 9.2 μm ± 0.4μm | |
| Mode Field Diameter @1550nm | 10.4 μm ± 0.5μm | |
| Core/Clad Concentricity Error | ≤ 0.8 μm | |
| Cladding Diameter | 125 μm +1/-3 | |
| Clad Offset | ≤ 0.07 μm | |
| Coating Diameter | 155 μm ± 10% | |
| Coating Offset | ≤ 6% | |
| Numerical aperture (NA) | 0.12 ± 0.02 | |
| Attenuation | @ 1310nm≤ 10 dB/Km
@ 1550nm≤ 10 dB/Km |
|
| Proof Test Level | ≥ 100Kpsi | |
| Median Tensile Strength | ≥ 3.3GPa | |
| Operating Temperature Range | -269°C to 700°C | |
| Bend Radius Short Term | 200×Fiber Radius (mm) | |
| Bend Radius Long Term | 400×Fiber Radius (mm) | |
