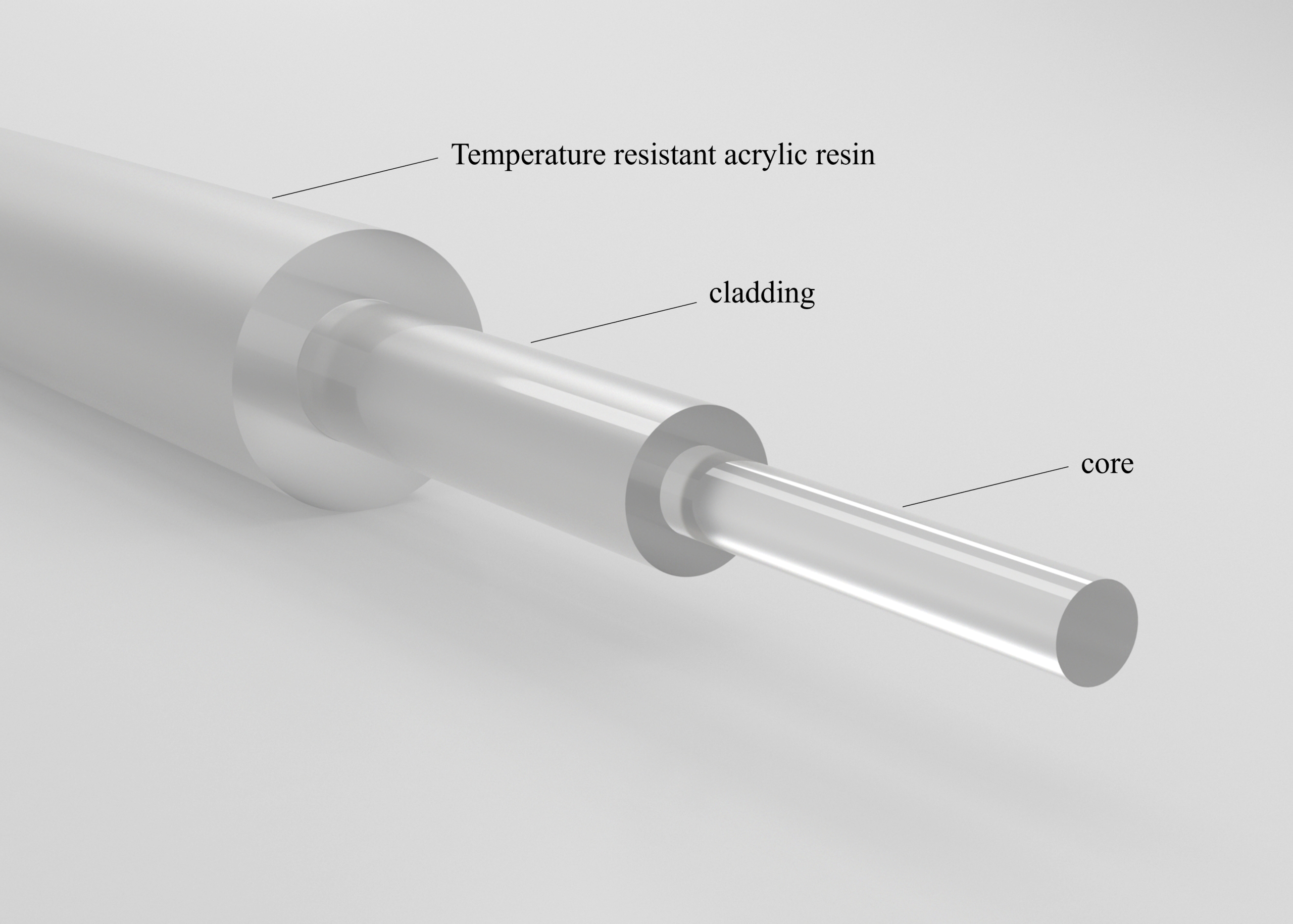

Acrylic resin with temperature resistance is compatible with traditional communication fiber coating processes, enabling high-speed UV curing and large-scale production. It has excellent moisture resistance, anti-fungal properties, and temperature resistance (150-180°C). Therefore, acrylic resin coatings are commonly used in adverse conditions such as medical sterilization, gas isolation, UV exposure, humidity, and high temperatures.
| Product code | GI_MM50/125/245HTAE | GI_MM62.5/125/245HTAE | PSC_GI_MM50/125/245HTAE |
| Numerical Aperture | 0.22-0.24 | 0.25-0.28 | 0.22-0.24 |
| Spectral loss（dB/km） | @850nm<3 dB/km
@1300nm<1 dB/km |
@850nm<4 dB/km
@1300nm<2 dB/km |
@850nm<3 dB/km
@1300nm<1 dB/km |
| Core Material | Germanium-doped silica | Fluorine-doped gradient refractive index silica | High purity quartz |
| Core diameter | 50±2μm | 62.5±2μm | 50±2μm |
| Cladding diameter | 125±1μm | ||
| Length | ≤30km | ||
| Jacket diameter | 245±10μm | ||
| Concentricity of core cladding | ≤1.5μm | ||
| Cladding non-circularity | ≤1% | ||
| Jacket Material | Temperature resistant acrylic resin | ||
| Long-term working temperature | -60~150℃ | ||
| Short-term temperature tolerance | 180℃ | ||
| Prooftest | 100kpsi | ||
Sollektor
+0086+15618183621
jasmin_xu@sollektor.com
info@sollektor.com
+86-4006-888-937
Acrylic resin with temperature resistance is compatible with traditional communication fiber coating processes, enabling high-speed UV curing and large-scale production. It has excellent moisture resistance, anti-fungal properties, and temperature resistance (150-180°C). Therefore, acrylic resin coatings are commonly used in adverse conditions such as medical sterilization, gas isolation, UV exposure, humidity, and high temperatures.
Medical Industry
Power Industry
Optical Communication Industry
Aerospace, Chemical, and Nuclear Industries
High-Temperature, High-Pressure, and Low-Temperature Environments
Compatible with Ethylene Oxide (ETO) Sterilization and Radiation Sterilization (Pure Silica Core)
Mining Industry, Oil and Gas Industry
Electromagnetic Radiation Environment, Underwater Use, Water-resistant
Medical Interventional Therapy with Biocompatibility
| Product code | GI_MM50/125/245HTAE | GI_MM62.5/125/245HTAE | PSC_GI_MM50/125/245HTAE |
| Numerical Aperture | 0.22-0.24 | 0.25-0.28 | 0.22-0.24 |
| Spectral loss（dB/km） | @850nm<3 dB/km
@1300nm<1 dB/km |
@850nm<4 dB/km
@1300nm<2 dB/km |
@850nm<3 dB/km
@1300nm<1 dB/km |
| Core Material | Germanium-doped silica | Fluorine-doped gradient refractive index silica | High purity quartz |
| Core diameter | 50±2μm | 62.5±2μm | 50±2μm |
| Cladding diameter | 125±1μm | ||
| Length | ≤30km | ||
| Jacket diameter | 245±10μm | ||
| Concentricity of core cladding | ≤1.5μm | ||
| Cladding non-circularity | ≤1% | ||
| Jacket Material | Temperature resistant acrylic resin | ||
| Long-term working temperature | -60~150℃ | ||
| Short-term temperature tolerance | 180℃ | ||
| Prooftest | 100kpsi | ||
