Hard Plastic Clad Large Mode Field Area Fiber

Sollektor

Hard Plastic Clad Large Mode Field Area Fiber

+0086+15618183621

jasmin_xu@sollektor.com

info@sollektor.com

+86-4006-888-937

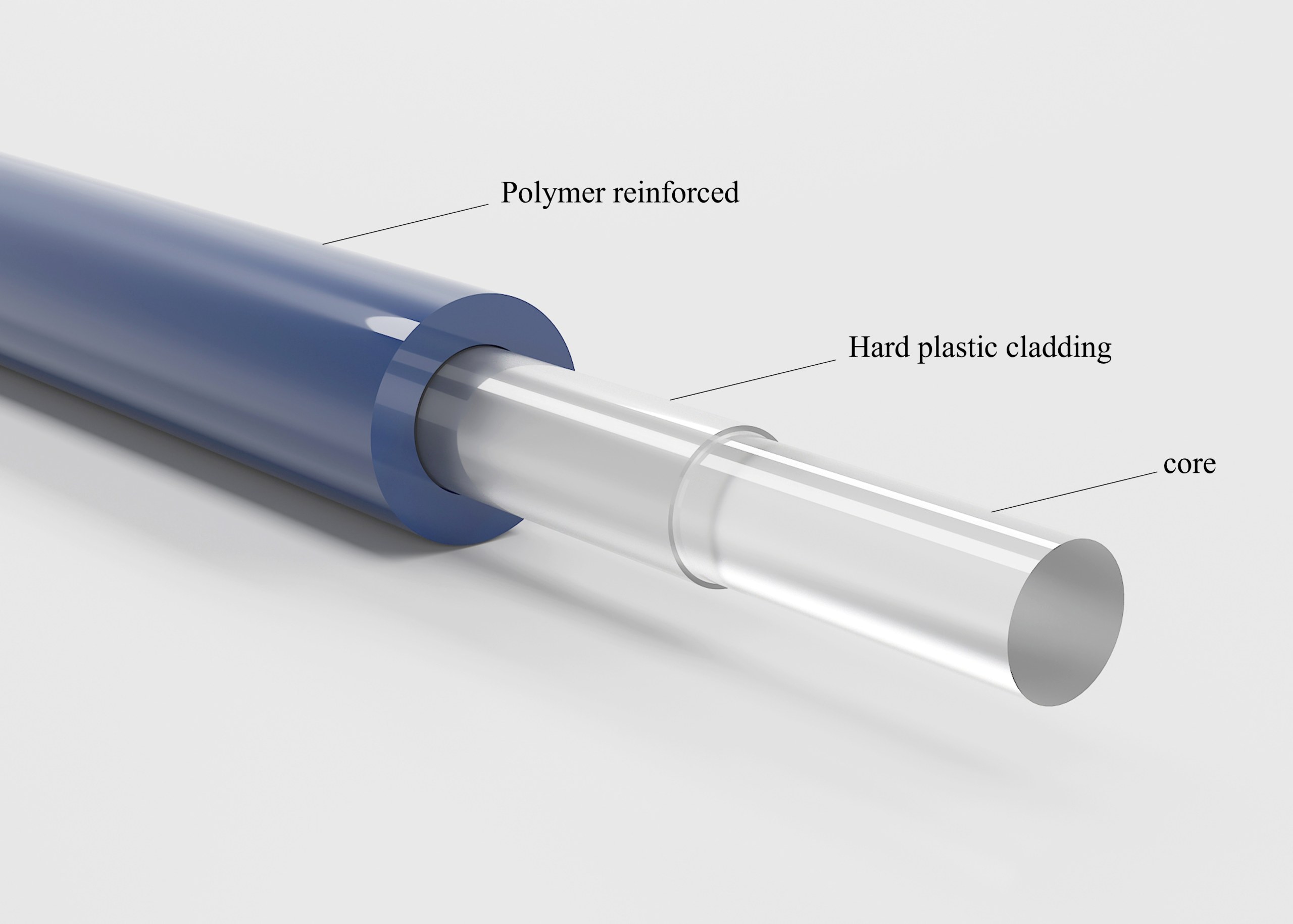

The Hard Plastic Clad fibres with a hard polymer sheath are characterised by high numerical apertures for a wide range of applications from long-range lighting to photodynamic therapy. This high-quality fiber features easy termination without bulb effect and is a cost-effective alternative to quartz/quartz fibers.

Product code PSHC400/440/750E PSHC600/640/1000E PSHC800/850/1040E PSHC1000/1060/1400E
Core diameter 400 ± 5 μm 600 ± 5 μm 800 ± 8 μm 1000 ± 12 μm
Cladding diameter 440 ± 10 μm 640 ± 10 μm 850 ± 10 μm 1060 ± 15 μm
Reinforcement diameter 750 ± 30 μm 1000 ± 30 μm 1040 ± 30 μm 1400 ± 50 μm
Numerical aperture (NA) 0.37 ± 0.02  or  0.48 ± 0.02
Fiber core material High purity fused quartz glass (High -OH or Low -OH)
Cladding material Fluorinated acrylic resin
Enhancement layer ETFE (other materials can be customized)
Attenuation coefficient @850 nm-10dB/km
Minimum bending radius (220 ~ 250) × fiber diameter

Product Details

Hard Plastic Clad Large Mode Field Area Fiber

Sollektor

Hard Plastic Clad Large Mode Field Area Fiber

+0086+15618183621

jasmin_xu@sollektor.com

info@sollektor.com

+86-4006-888-937

The Hard Plastic Clad fibres with a hard polymer sheath are characterised by high numerical apertures for a wide range of applications from long-range lighting to photodynamic therapy. This high-quality fiber features easy termination without bulb effect and is a cost-effective alternative to quartz/quartz fibers.

Product code PSHC400/440/750E PSHC600/640/1000E PSHC800/850/1040E PSHC1000/1060/1400E
Core diameter 400 ± 5 μm 600 ± 5 μm 800 ± 8 μm 1000 ± 12 μm
Cladding diameter 440 ± 10 μm 640 ± 10 μm 850 ± 10 μm 1060 ± 15 μm
Reinforcement diameter 750 ± 30 μm 1000 ± 30 μm 1040 ± 30 μm 1400 ± 50 μm
Numerical aperture (NA) 0.37 ± 0.02  or  0.48 ± 0.02
Fiber core material High purity fused quartz glass (High -OH or Low -OH)
Cladding material Fluorinated acrylic resin
Enhancement layer ETFE (other materials can be customized)
Attenuation coefficient @850 nm-10dB/km
Minimum bending radius (220 ~ 250) × fiber diameter
